7.3.7 Lab - View Network Devices MAC Address info Answers
Kool: Tallinna Tehnikaülikool (TalTech, TTÜ)
Aine: Arvutivõrkude alused
Kategooria: Informaatika
Postitatud: 14 jaanuar 2025
Postitaja: tegelane
Kirjeldus

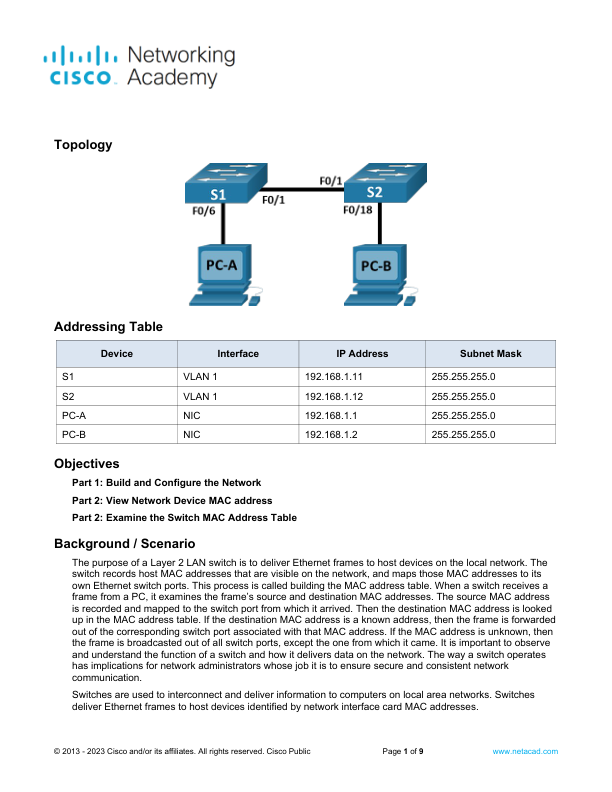

Topology Addressing Table Device Interface IP Address Subnet Mask S1 VLAN 1 192.168.1.11 255.255.255.0 S2 VLAN 1 192.168.1.12 255.255.255.0 PC-A NIC 192.168.1.1 255.255.255.0 PC-B NIC 192.168.1.2 255.255.255.0 Objectives Part 1 Build and Configure the Network Part 2 View Network Device MAC address Part 2 Examine the Switch MAC Address Table Background / Scenario The purpose of a Layer 2 LAN switch is to deliver Ethernet frames to host devices on the local network. The switch records host MAC addresses that are visible on the network and maps those MAC addresses to its own Ethernet switch ports. This process is called building the MAC address table. When a switch receives a frame from a PC it examines the frames source and destination MAC addresses. The source MAC address is recorded and mapped to the switch port from which it arrived. Then the destination MAC address is looked up in the MAC address table. If the destination MAC address is a known address then the frame is forwarded ou…
